B2B GEEKS

8-Port Gigabit Ethernet Switch with 8-Port PoE+, Desktop/Rackmount

8-Port Gigabit Ethernet Switch with 8-Port PoE+, Desktop/Rackmount

Regular price $109.99
Regular price Sale price $109.99
Sale Sold out
Shipping calculated at checkout.
FCC Verified logo CE Verified logo RoHS Compliant PoE+ Capable

Description

8-Port Gigabit Ethernet Switch with 8-Port PoE+, Desktop/Rackmount

What This Product Does

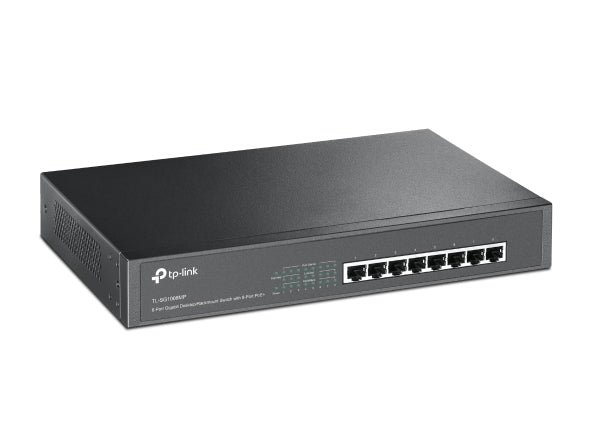

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 153W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology reduces power consumption, making it an eco-friendly solution for your business network.

How This Product Works

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Switch Network Overview

Prioritized Power Supply

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 126W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, while no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy to Use

TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.

Features

Features

  • 8 10/100/1000Mbps RJ45 ports
  • 8 PoE+ ports to power 8 PoE devices at the same time
  • IEEE 802.3af or 802.3at compliant up to 30W per port device
  • Innovative energy-efficient technology reduces power consumption
  • Rack mountable with included rack mount bracket
  • Total PoE power budget up to 126W
  • Plug and play design, no configuration required

Specifications

Specifications



Item Width Height Depth
TL-SG1008MP 11.6" 1.7" 7.1"

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. These Switches can be combined with a wide array of products such as:

What's in the box?

What's in the box?

  • 1 x 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
  • 1 x Power Adapter
  • 1 x User Guide
  • 1 x Rackmount Kit
  • 1 x Rubber Feet
