AX3000 Ceiling Mount WiFi 6 Access Point

PoE Capable


AX3000 Ceiling Mount WiFi 6 Access Point

Lightning-Fast AX3000 WiFi 6 Speeds

New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5.† Every application feels more fluid with drastically improved WiFi speeds.‡

    Wireless Application Network Map

    Higher Efficiency for More Devices

    WiFi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.‡

    Seamless Integration into Omada SDN

    The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

    • Hardware or Software or Cloud-Based Controllers
    • Centralized Cloud Management
    • Zero-Touch Provisioning
    • Intelligent Monitoring

    Auto Channel Selection and Power Adjustment
    to Optimize Overall Performance*

    Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

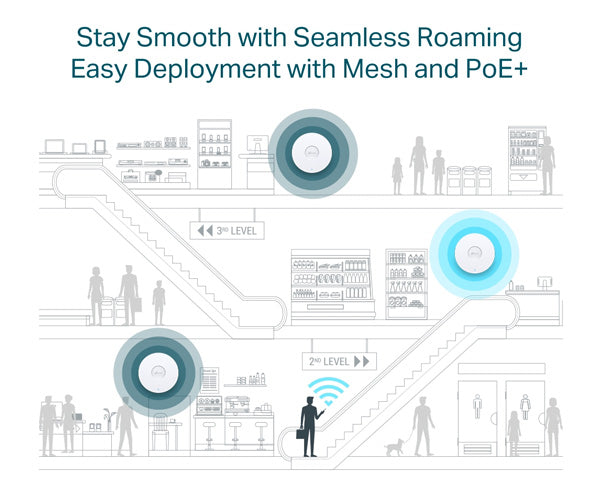

    Easy Deployment & Higher Performance by Omada Mesh§

    • Easy Pairing, Less Wiring - With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
    • Optimized Network Performance - Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

    Always Stay Smooth with Fast Roaming§

    Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

    Ultra-Slim Design Brings More Agility

    Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.

    Easy to Mount with Refined Industrial Design

    • Step 1: Push up
    • Step 2: Rotate to lock

    Boosted Network Security and Efficiency

    • Secure Guest Network with Up to 16 SSIDs - Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
    • Boost Business with Facebook WiFi and SMS Login - Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§
    • WPA3 for Worry-Free Open Public Networks - With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
    • Band Steering - Automatically moves dual band devices onto the wider 5GHz band for faster connections.
    • Load Balance - Ensures large numbers of users have smooth network experiences in high-density business networks
    • Airtime Fairness - Increases average network throughput in heavily congested environments


    • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
    • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
    • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
    • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
    • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
    • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
    • PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
    • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.


    What's in the Box

    • (1) - EAP653 Wireless Access Point
    • (1) - Ceiling/Wall Mounting Kits
    • (1) - Installation Guide
