Beam Clamp J-Hook

SKU JH1-6697-12BC
UL Listed Made in USA RoHS Compliant

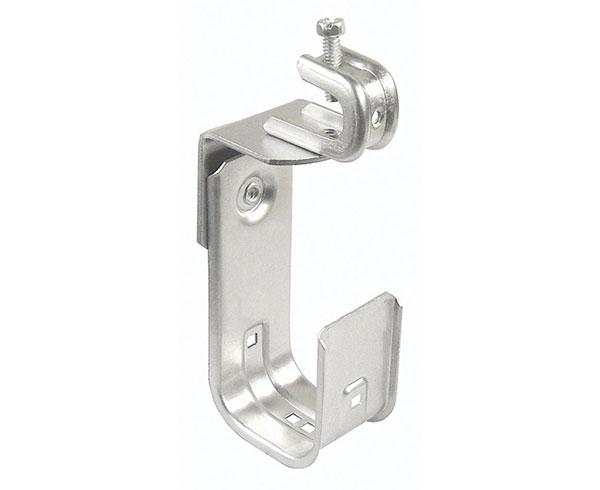

J-Hook with 1/4" Beam Hook Attachment

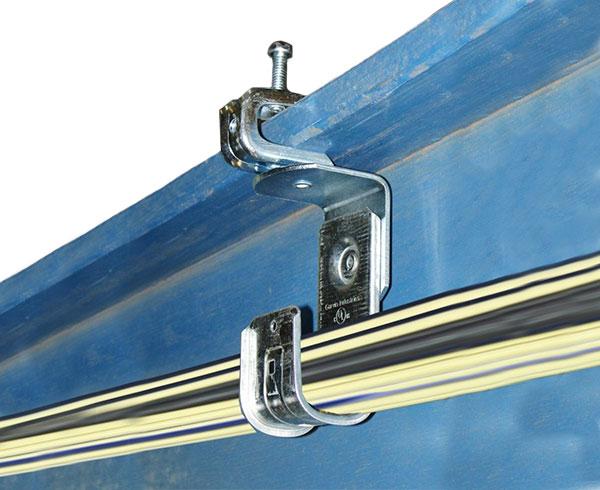

Our Beam Clamp J-Hooks can swivel 360 degrees to secure the hook at any rotation. This J-Hook eliminates the problem of point loads that can cause bandwidth damage to sensitive cables such as fiber optic, CAT 5E, 6, 7 or many others. This product provides support to sensitive voice and data cables without causing stress.

Product Quality

This J-Hook is versatile and can be attached to a wide variety of structures using beam clamps, clips and other support components. The continuous wide base radius design supports the natural bends and curves of cable.

Durability & Strength

These J-Hooks provide excellent support for CAT5, CAT6, CAT6A, and Fiber Optic cables. This product is light-weight, ideal as a cost effective alternative to cable trays or ladder runway racks.



  • Size: 1-5/16", 2", 4"
  • Fits beam thickness 1/4"
  • CAT5E Cable Capacity: 40
  • Material: Zinc Plated Steel
  • Super Smooth Edges Eliminates Cable Snags
  • UL, CUL, RoHS Compliant


  • Telcom/Voice
  • Network/Data
  • Broadband, Satellite
  • CCTV
  • Fiber
  • Flexible Conduit



Material Zinc Plated Steel
Finish Zinc Plated
Special Features Includes snap in retainer bar
Size 3/4", 1-5/16", 2", 4"
Compliance and Standards UL, CUL, RoHS Compliant
Meets and Exceeds TIA/EIA Requirements for Structured Cabling Systems

Cable Capacity

Part Size CAT 5e (4-pair) CAT 6 (4-pair) ScTP/FTP (4-pair) STP (4-pair) Load Rating
3/4" 16 10 7 5 30 lbs
1-5/16" 16 10 7 5 30 lbs
2" 80 50 40 25 30 lbs
4" 200 185 18 120 30 lbs

Additional Information

Wire & Cable Management Accessories

Having an effective cable management system in place keeps your networking cable organized, which helps make system maintenance easier. We carry a wide assortment of cable management solutions. Our wire management solutions help organize and protect your network cabling by keeping it off the floor.

To learn more about our Wire & Cable Management please visit our overview page. Our J-Hooks can be combined with a wide array of products such as:

What's in the box?

What's in the box?

  • Qty 1 - J-Hook with 1/4" Beam Clamp Attachment
