CAT5E Outdoor Bulk Ethernet Cable, Direct Burial Shielded Solid Copper, Dry Gel Tape, 24 AWG - 1000ft

CAT5E Outdoor Bulk Ethernet Cable, Direct Burial Shielded Solid Copper, Dry Gel Tape, 24 AWG - 1000ft

Regular price $209.99
Regular price Sale price $209.99
Sale Sold out
Shipping calculated at checkout.
RoHS Compliant ISO 9001

Description

CAT5E Bulk Direct Burial Water Blocking Tape Cable

Our Outdoor Direct Burial CAT5E Cable with Dry Gel Tape is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

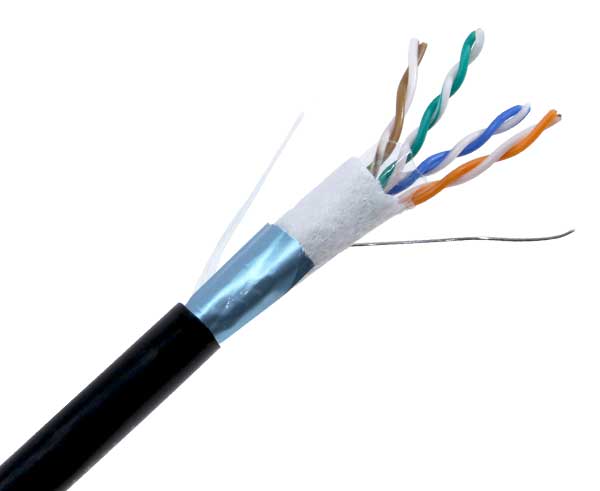

This Shielded CAT5E Outdoor Direct Burial Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a polyethylene (PE) Jacket. This cable also includes an aluminum foil shielding which helps eliminate and protect against electrical interferences that could impede your signal. For added moisture protection this cable includes a water block tape that absorbs water which keeps it out of the cable and away from the conductors. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our Shielded Category 5E Water Block Layer Direct Burial Outdoor Cable is designed for residential outdoor direct burial LAN applications, making it the ideal solution for installation runs that require the cable to be buried under ground in conduit. This cable was also designed with a UV resistant outer jacket, which helps prevent cables from cracking and braking because of sun damage.

To make sure we are supplying our customers with high quality bulk Ethernet cables our cable have to meet and/or exceeds CAT5E ANSI/TIA-568.2-D standards and is tested up to speeds of 350MHz. Our CAT5E Outdoor cable is also manufactured to meet current CAT5E guidelines and is verified by outside standards organizations and is RoHS Compliant.

Technical Diagram

CAT5E Outdoor Water Blocking Direct Burial Shielded bulk cable diagram

Cat 5E Bulk Cable Options

Stranded Copper UTP Stranded Copper F/UTP Solid Copper UTP Solid Copper F/UTP
General (CM) General (CM) General (CM) Outdoor (CMX) Riser (CMR) Plenum (CMP) Outdoor (CMX) Riser (CMR) Plenum (CMP)

Cat 6 Bulk Cable Options

Stranded Copper UTP Stranded Copper F/UTP Solid Copper UTP Solid Copper F/UTP Solid Copper S/FTP
General (CM) General (CM) General (CM) Outdoor (CMX) 24AWG Riser (CMR) 23AWG Riser (CMR) Plenum (CMP) Outdoor (CMX) Riser (CMR) Plenum (CMP) General (CM)

Features

  • High-Performance Data Communications Cable
  • CAT5E Outdoor Direct Burial, Outside Plant
  • Dry Gel Water Blocking Tape
  • Suitable For 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
  • Designed For Outdoor Direct Burial Installations (CMX)
  • UV Resistant Outer Jacket prevents cracking and sun damage
  • Aluminum Foil Shielded w/ Unshielded Twisted Pairs (F/UTP)
  • 4-Pair Easily Identified Color Striped Pairs
  • 24 AWG Solid Bare Copper Conductors
  • Excellent Attenuation And Crosstalk Characteristics
  • Exceeds ANSI/TIA-568.2-D, ISO/IEC 11801, And YD/T1019 Specifications
  • RoHS Compliant
  • Sequential Length Markings On Jacket
  • Supplied On A 1000' Spool

Specifications

Additional Information

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.



Cable Accessories Options

To learn more about our Category-5E Outdoor Aerial Shielded Ethernet Cable With Steel Messenger Cable please visit our product overview page.

Our CAT5E Direct Burial Outdoor Shielded Ethernet Cable is compatible with our:

What's in the Box?

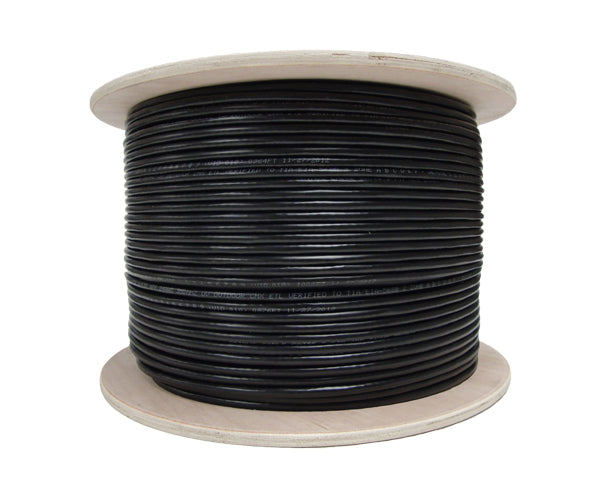

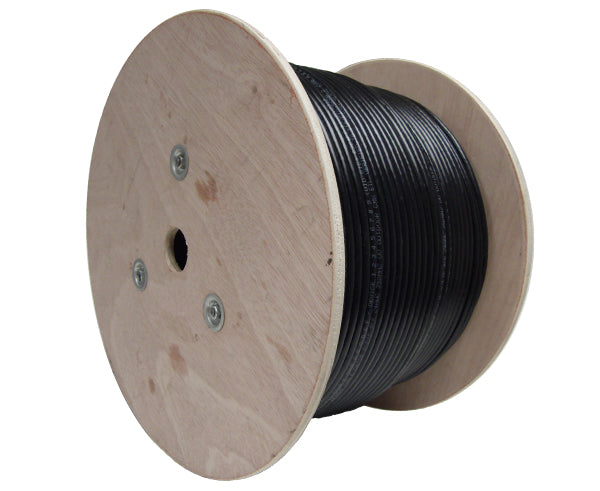

  • Qty 1 - 1000FT Spool of CAT 5E Shielded Outdoor Direct Burial Cable
