CAT6 Direct Burial Outdoor Bulk Ethernet Cable, Solid Copper Dual Shielded, 23AWG 1000FT
CAT6 Direct Burial Outdoor Bulk Ethernet Cable, Solid Copper Dual Shielded, 23AWG 1000FT
Description
Our Dual Shielded Outdoor Direct Burial CAT6 Cable is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.
This Dual Shielded Outdoor Direct Burial CAT6 Enhanced Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a low density polyethylene (LDPE) Jacket. This cable also includes a dual shielding which helps eliminate electrical interferences that could impede your signal. This dual shielding is comprised of aluminum shielding and then wrapped in braided aluminum which offers to layers of protection from interference. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. Our Category 6 Direct Burial Outdoor Cable is designed for residential outdoor direct burial LAN applications, making it the ideal solution for installation runs that require the cable to be buried under ground in conduit. This cable is also tested up to speeds of 600MHz.
To make sure we are supplying our customers with high quality bulk Ethernet cables our cable have to meet and/or exceeds CAT6 ANSI/TIA-568.2-D standards. Our CAT6 Outdoor cable is also manufactured to meet current CAT6 guidelines and is verified by outside standards organizations and is RoHS Compliant.
Technical Diagram
Cat 6 Bulk Cable Options
Stranded Copper UTP | Stranded Copper F/UTP | Solid Copper UTP | Solid Copper F/UTP | Solid Copper S/FTP | ||||||
General (CM) | General (CM) | General (CM) | Outdoor (CMX) | 24AWG Riser (CMR) | 23AWG Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | General (CM) |
CAT6A Bulk Cable Options
Solid Copper UTP | Solid Copper F/UTP | |||||
Outdoor (CMX) | Riser (CMR) | Plenum (CMP) | Outdoor (CMX) | Riser (CMR) | Indoor/Outdoor (CMR) | Plenum (CMP) |
Features
- High-Performance Data Communications Cable
- CAT6 Outdoor Direct Burial, UV Rated, Outside Plant
- Suitable For 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
- Designed For Outdoor Installations
- 30% TC Braided + AL Foil Shielded w/ Unshielded Twisted Pairs (SF/UTP)
- 4-Pair Easily Identified Color Striped Pairs
- 23 AWG Solid Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Exceeds ANSI/TIA-568.2-D, ISO/IEC 11801, And YD/T1019 Specifications
- RoHS Compliant
- Sequential Length Markings On Jacket
- Supplied On A 1000' Wooden Spool In A Box
Specifications
Additional Information
Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
Cable Accessories Options
To learn more about our Category 6 Direct Burial Outdoor Bulk Cable please visit our product overview page.
Our CAT6 Direct Burial, Outdoor, Dual Shielded, Black Ethernet Cable is compatible with our:
- CAT6 Riser(CMR) Shielded Cables
- CAT6 Shielded Patch Cables
- CAT6 Shielded Modular Plugs
- CAT6 Shielded Keystone Jacks
- blank Patch Panels
- CAT6 Shielded Patch Panels
- Wall Plates
- Tools
- Testers
- Cable Management Accessories
What's in the Box
Item Number: C6CMXD-6258BK

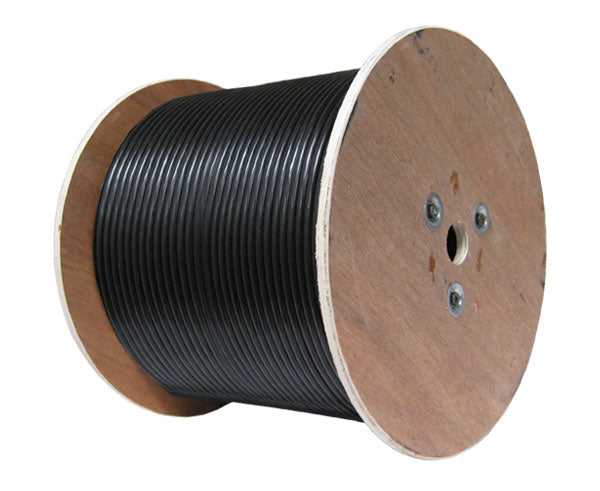

- CAT6 Outdoor Direct Burial Ethernet Cable, Black Jacket, 1000ft On A Wooden Spool In A box
