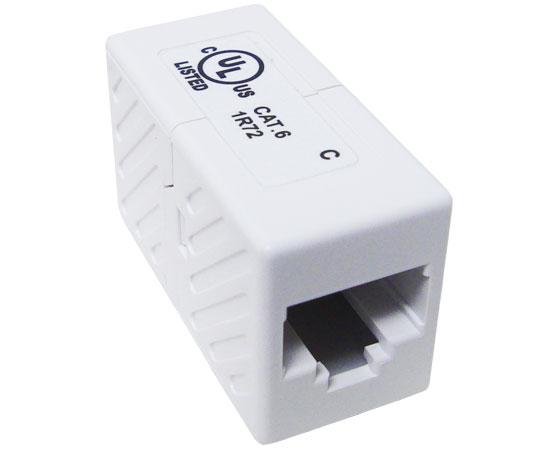

CAT6 Slim Inline Coupler Extension, Unshielded
CAT6 Slim Inline Coupler Extension, Unshielded
Couldn't load pickup availability
For a more complete list of compatibility with the CAT6 Slim Type In-Line Coupler Extension, click on the Additional Information tab.
Description
CAT6 In-Line Coupler, Ethernet Data Coupler Extension
Our CAT6 Slim In-Line Coupler Extension are engineered with PCB technology, phosphor bronze IDC contacts, gold plated prongs, and a fire-retardant plastic housing. The CAT6 Slim Coupler line is engineered to simplify the connection helping you save time and money. Simply plug in your patch cables and/or RJ45 terminated CAT6 cables and you're done.
Because we take great pride in our quality control procedures and our commitment to quality our CAT6 Slim In-Line Coupler Extension is subject to UL standards and is UL Listed. Our CAT6 Slim Coupler also meet all requirements for EIA/TIA and also inspected and tested to comply with stringent transmissions and safety standards.
To complete your CAT6 network we carry a full end to end solution including CAT6 bulk Ethernet cables, CAT6 patch cables, CAT6 RJ45 modular plugs, CAT6 keystone jacks, network racks and enclosures, Ethernet switches and wall plates. We also have a large assortment of tools, testers and cable management accessories that will help make your installation fast, smooth and organized. If you have any questions, feel free to give us a call.
Features
Features
- CAT6 Performance Speeds Of Up To 600 MHz
- Meets & Exceeds Industry Standards
- For Use With CAT6 Ethernet Cables/Patch Cords
- One RJ-45 Female To One RJ-45 Female
- Designed For Computer Networking Applications
- Meticulously Engineered To Deliver Exceptional Performance
- High Quality Connection And Reliable Performance
- Small Form-Factor
- Gold Plated Over Nickel Contacts For Signal Clarity
- UL Listed
Applications
- Voice
- 10BaseT
- 1000Base-T, VOIP
- 4 Mbps Token Ring
- 10 Mbps Ethernet
- 155 Mbps ATM
- ISDN
Specifications
Material
RJ45 Jack: |
|
| Housing: | ABS, UL 94V-0 with optional color |
| Contact Bracket: | PC, UL 94V-2, Transparent color |
| Height: | 0.8 inches |
| Width: | 0.6 inches |
| Depth: | 1.4 inches |
RJ45 Jack Contact: |
|
| Material: | Phosphor Bronze with plated Nickel |
| Finish: | 50 micro-inch Gold plated on plug contact area |
| PCB: | FR4, UL 94V-0 |
Performance
| Insertion Force: | 20N max. |
| Retention Strength: | 7.7 kg between Jack and Plug |
| Operating temperature: | -10ºC to 60ºC / 14ºF to 140ºF |
| Life (mating cycles): | 750 cycles min |
| The CAT 5E transmission performance is in compliance with ANSI/TIA/EIA 568 B.2 standards | |
Additional Information
Additional Information
Our CAT6 Keystone Couplers are compatible with:
What's in the box?
What's in the box?
- CAT6 Female RJ45 to Female RJ45 Slim Type In-Line Coupler Extension
