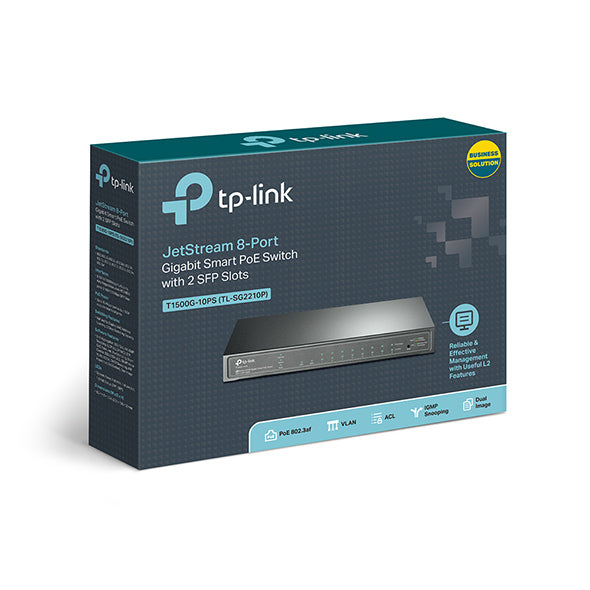

JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots

JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots

$109.99
$109.99
Sale Sold out
Shipping calculated at checkout.

FCC Logo   ROHS Logo PoE+ Capable

Description

JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots

What This Product Does

TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8-gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support IEEE 802.3af/at with total PoE power budget of 58W* and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINK's Gigabit Smart Switch TL-SG2210P is specially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.

Switch Network Overview

IEEE 802.3af/at-compliant Power over Ethernet

The TL-SG2210P supports 8 ports of IEEE 802.3af/at-compliant PoE and has a total power supply of 58W* to power any 802.3af/at compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones, and other PoE-powered devices while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Advanced QoS Features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. The administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter-free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 Features

For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics, and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events.

Features

Features

  • 8 PoE+ ports, with total PoE power budget of 58W* and useful PoE power management features
  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
  •  L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features
  •  Innovative energy-efficient technology saves up to 50% of power consumption

Specifications

Specifications




Item Height Width Depth
TL-SG2210_V3 1.0" 8.2" 4.9"

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's in the box?

What's in the box?

  • 1 x TL-SG2210P_V3
  • 1 x Power Cord
  • 1 x Installation Guide
  • 1 x Resource CD
  • 1 x Rubber Feet
