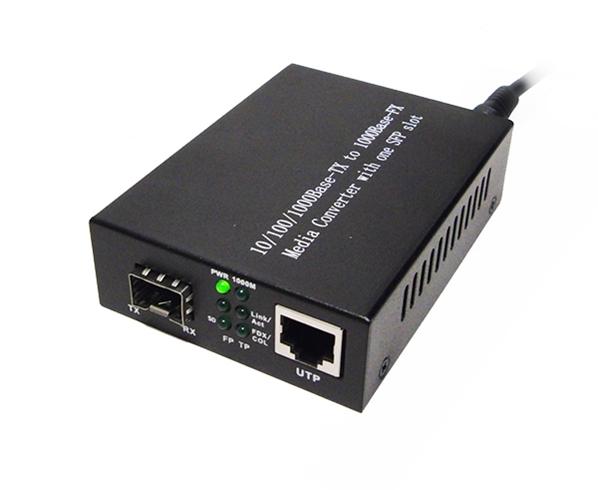

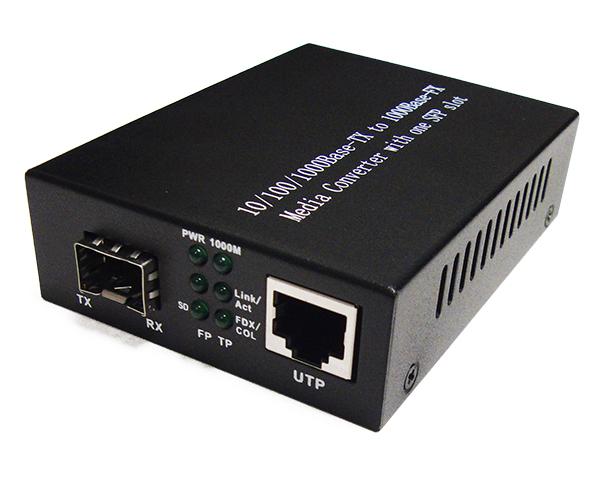

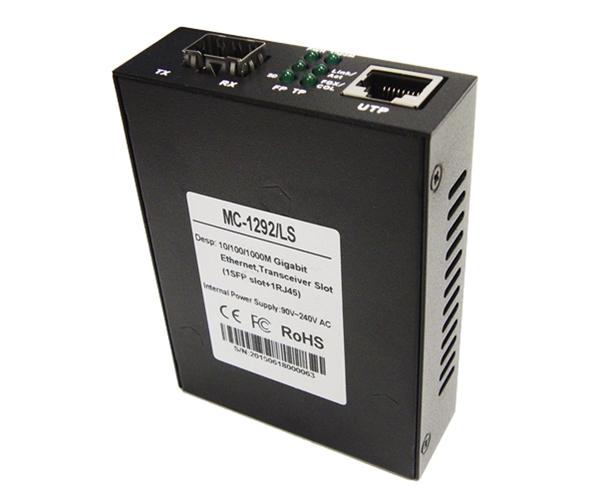

Media Converter, Gigabit Ethernet, RJ45-SFP Transceiver Port, 10/100/1000 Mbps Ethernet

SKU MC-1292/LS
FCC Logo CE Logo RoHS Compliant
This unit requires a SFP Transceiver module, which is sold separately.
Please add a compatible transceiver to your order.


Media Converter, Gigabit Ethernet, 10/100/1000Base-TX RJ45 to 1000Base-FX SFP Transceiver Port

10/100/1000M adaptive Gigabit Ethernet optical media converter is used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000 Base-TX and 1000 Base-Fx network segments, meeting long-distance, high-speed and high-broadband Pure Gigabit Ethernet workgroup users' needs, achieving high-speed remote interconnection up to 100km relay-free computer data network.

With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.

The MC-1292/LS is an auto-adaptation unmanaged media converter that provides an interface between 10/100/1000BASE-TX RJ45 Ethernet and 1000BASE-FX SFP Transceiver Port, allowing users to integrate fiber optic cabling into 10/100/1000Base-TX copper environments. This Media Converter is in accordance with Ethernet standard IEEE802.3, 1000BASE-TX and 1000BASE-FX.


  • In accordance with Ethernet standards IEEE802.3, 10/100/1000Base-TX and 1000Base-FX
  • Supported Ports: SFP Transceiver Port for optical fiber; RJ45 for twisted pair
  • Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
  • Auto MDI/MDIX supported without need of cable selection
  • Up to 6 LEDs for status indication of optical power port and UTP port
  • External and built-in DC power supplies provided
  • Up to 1024 MAC addresses supported
  • 512kb data storage integrated, and 802.1X original MAC address authentication supported
  • Conflicting frames detection in half-duplex and flow control in full duplex supported
  • Supports transmission distance up to 100km


  • For intranet prepared for expansion from 100M to 1000M
  • For integrated data network for multimedia such as image, voice and etc.
  • For point-to-point computer data transmission
  • For computer data transmission network in a wide range of business application
  • For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
  • In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks

Application Industries

  • Intelligent transport monitoring system
  • safety and security monitoring system
  • campus network
  • industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.)
  • military monitoring (warehouse, guard and confidentiality etc.)
  • TV program transfer system


Standards and Protocols: IEEE 802.3 10 Base-T standard, IEEE802.3u 100Base-TX/FX standard
Connectors: (1) RJ-45 connector; (1) SFP port
Operation Mode: full duplex mode or half duplex mode
Power Supply Parameters: 5V DC 2A (outside); 110-265V AC 48VDC (built-in)
Environmental Temperature: 32°F ~ 140°F (0°C ~ 60°C)
Relative Humidity: 5% ~ 90%
Safety & Emission: FCC, CE
Dimensions: 1.02" x 2.80" x 3.70" (26mm x 71mm x 94mm) - external power supply
                       1.58" x 4.33" x 5.51" (40mm x 110mm x 140mm) - built-in power supply

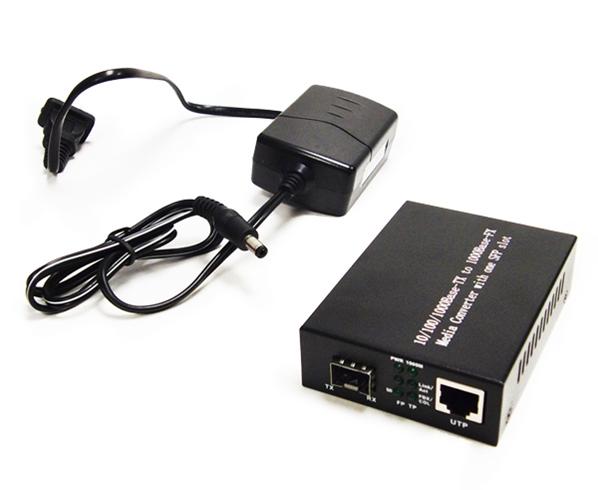

Power Supply: External Power Adapter
TP Cable: Cat5 UTP cable
Fiber: 50/125, 62.5/125um (multimode); 9/125, 10/125um (single mode)
Media Converter, Gigabit Ethernet, RJ45-SFP Transceiver Port, 10/100/1000 Mbps

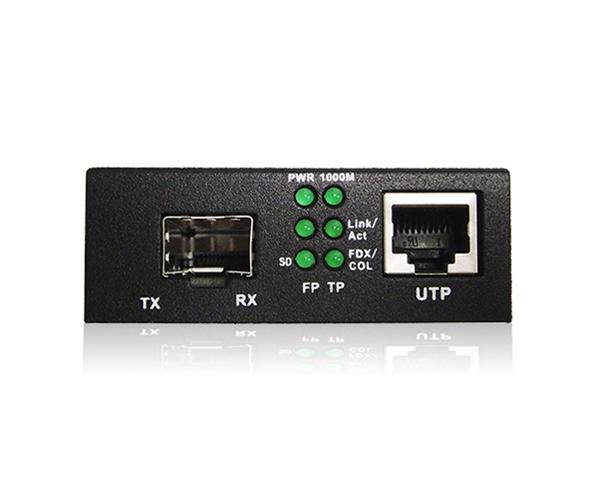

Front Panel
Media Converter, Gigabit Ethernet, RJ45-SFP Transceiver Port, 10/100/1000 Mbps
Back Panel
LED Display
Power is ON.
Power is Fail.
Fiber port signal
detect LED
Laser is receiving
No laser input
Fiber port
link/action status
Fiber link is ok
Data is being received or transmitted
Fiber link is fail
UTP port speed LED
1000M speed
10M speed
UTP port
link/action status
Link is ok
Data is being received or transmitted
Link is fail
UTP port duplex LED
Full duplex
Half duplex
